Getting started with CSML
How it works
CSML (Conversational Standard Meta Language) is an open-source programming language dedicated to building chatbots.
Written itself in Rust and fully Turing-complete, the CSML acts as a linguistic/syntactic abstraction layer, designed for humans who want to let other humans interact with any machine, in any setting. The syntax is designed to be learned in a matter of minutes, but also scales to any complexity of chatbot.
The CSML handles short and long-term memory slots, metadata injection, and can be plugged in with any external system by means of standard integrations or custom APIs, as well as integrated into other programming languages with parallelized runtimes.
Build your chatbot with CSML
You can easily experiment the language on the CSML development studio, using a sample bot available in your library or by creating your own.
Each bot gives you a full access to the CSML framework - a set of specialized tools to make and customize your chatbots : editor, chatbox, apps, functions and files library, analytics and connectors.
Create your conversational experiences
You can create your conversation modifying an existing flow or creating your own.
A flow is a CSML file which contains several steps to be followed during a conversation with a user.
The first instructions have to be placed in the start step, then you can move from a step to the next
goto stepname, and finish the current conversation using
Each step contains instructions on how to handle the interactions within the step: what to say, what to
remember, where to go...
For the bot to say a sentence, you just need to use the keyword
say followed by the type of
message you want to send.
- to display a message: text, questions, urls, components (image, video, audio, buttons…)
- to simulate behaviors, such as waiting time (Wait) or message composition (Typing)
Like a human, a chatbot is supposed to understand and react to messages sent by the user.
In a conversational logic, CSML allows the chatbot to wait for a user answer using the keyword
hold, and interpret the expected user input (called
event) to trigger an

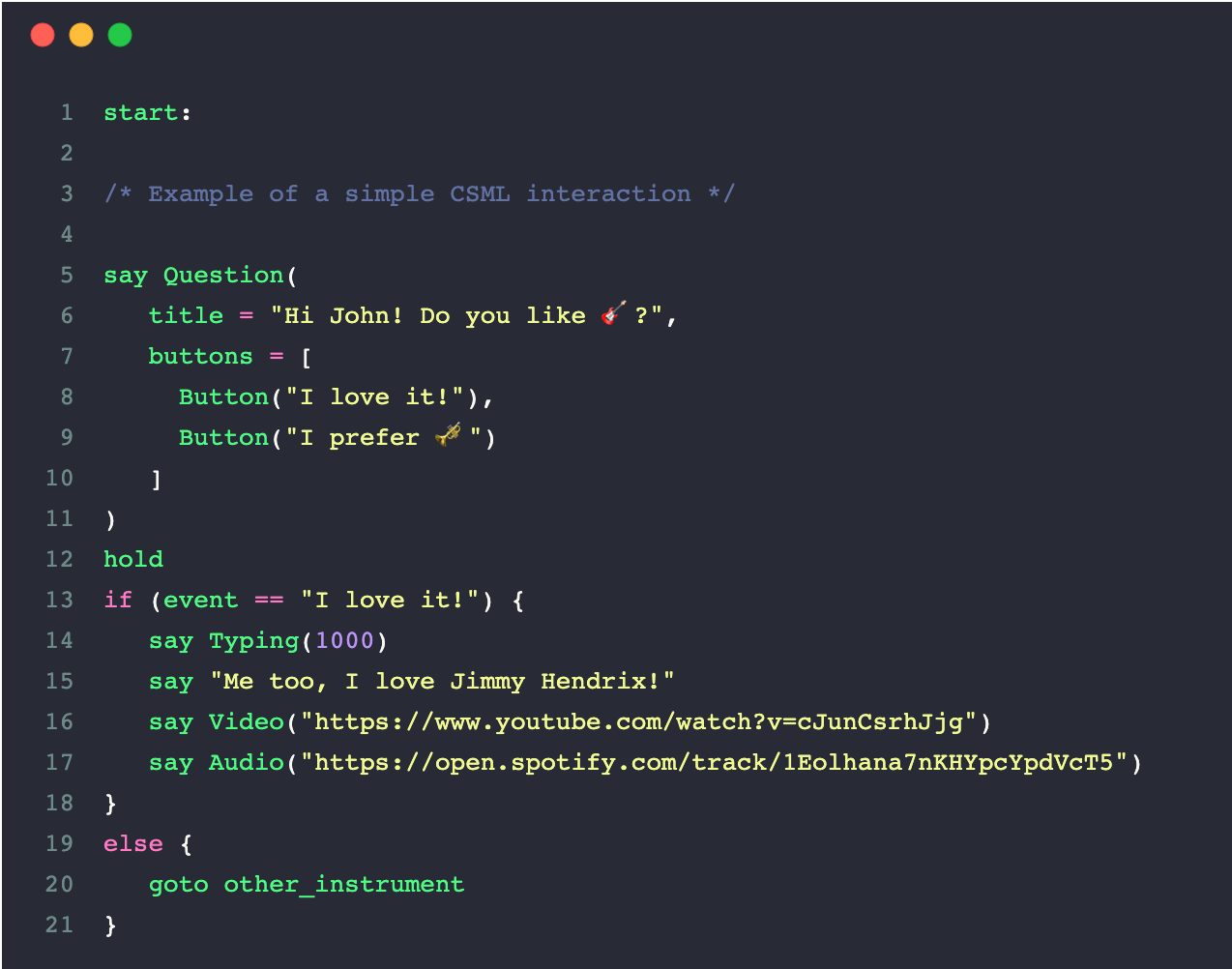

Here is an example of a simple interaction where the bot is asking if the user likes guitar and waiting for two specific answers in order to trigger actions.
Use memories and local variables
Memory is essential in
the CSML logic. When two people are chatting, they constantly memorize information to be reused in

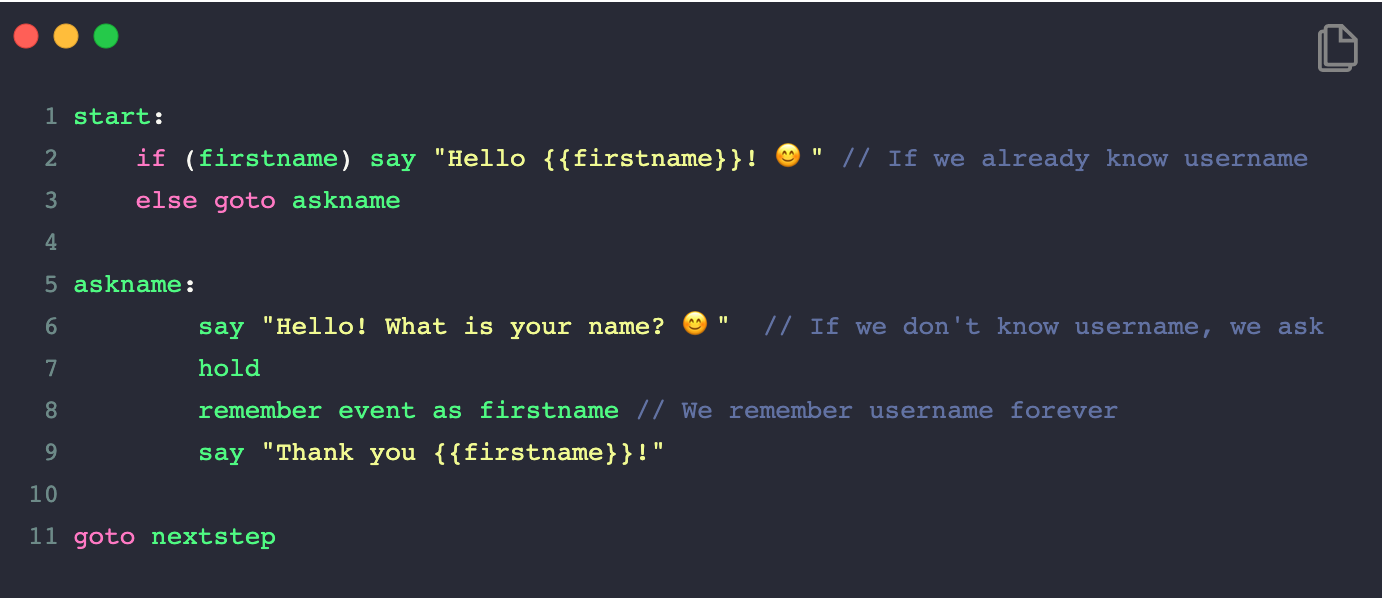

CSML provides two types of variables: local variables, with a very short life cycle, and persistent variables, called memories.
The memories are assigned as followed use the keyword
remember and can be reused in every
steps or in a future conversation, while the local variables are executed within one step, assigned with
You can output any variable into a string value with the double curly braces.
Connect apps and execute your own functions
Once your function is uploaded, you can test it and call it into your CSML step.
Here’s an example of a function available in the apps library, performing any HTTP request easily!
Deploy your chatbot
Once your chatbot is ready to chat with your users, you can select the channel you want to connect on. From now you can connect your bots to Slack or using the CSML Client API to receive requests.
